1140220
Sold Out
$ 260.00

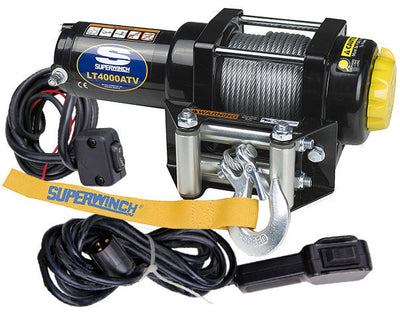

The Superwinch LT4000 ATV SR is a quality winch and one of the best values on the market today. With 4,000lbs of pull and a small size, the LT4000 is a great choice.
Rated Line Pull | 4,000 lbs (1814 kgs) |
Motor | Sealed 1.4 hp motor |
Gearing | 3-Stage Planetary |
Gear Ratio | 166:1 |
Solenoid | Sealed Solenoid; Circuit Breaker Protected |
Clutch | Free Spooling, Ergonomic Control |
Brake | Automatic, 100% Load Holding |
Rope | Wire Rope 50' x 3/16" |
Hook | Heavy Duty Clevis Pinned Latched |
Fairlead | Heavy Duty 4-Way Roller |
Remote | 12' Handheld plus Handle Bar Rocker Switch |
Dimensions | 13.2" L x 4.25" W x 4.25" H (335.3mm L x 108mm W x 108mm H) |
Drum Diameter | 2.0" (50.2mm) |
Drum Length | TBD |
Mounting Bolt Pattern | 4.87" x 3.0" |
Installed Weight | 25.0 lbs |
Shipping Weight | 28.0 lbs |
Warranty | Two Year Limited |
UPC | 0 22705 00334 6 |
Line Pull: 0 lbs (0 kgs) | 20 Amps Motor Draw / 18 FPM (5.4 MPM) Line Speed |
Line Pull: 4000 lbs (1814 kgs) |
210 Amps Motor Draw / 4.5 FPM (1.3MPM) Line Speed |
Battery Leads | 6' x 6 Gauge |
