Superwinch Talon 18.0 24v Winch - Steel Rope - 1618300

1618300

Superwinch Talon 18.0 24v Winch - Steel Rope - 1618300

Sold Out
$ 1,759.99 $ 1,759.99

Talon 18, 24 volt, wire rope, with roller fairlead.

*** THIS IS THE 24VOLT VERSION OF THE TALON***

Specifications

Rated Line Pull	18,000 lbs (8,165 kgs)
Motor	Sealed 6 hp (4.48 kw) Series Wound

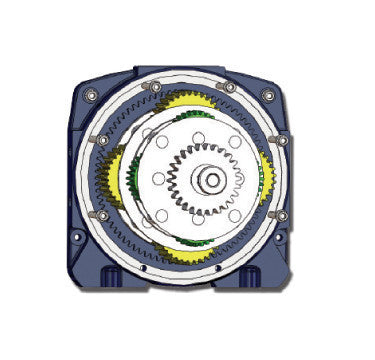

Gearing	2-Stage Planetary and 2-Stage Spur
Gear Ratio	346:1
Solenoid	Vented, Sealed Submersible Solenoid with 3-Year Warranty
Clutch	Free-spooling Clutch/Pull and Turn
Brake	Automatic/100% Load Holding (outside of drum)
Rope	Wire Rope 1/2” x 90’ (13mm x 27.43m)
Hook	Heavy Duty/Clevis Pinned/Latched
Fairlead	Heavy Duty 4-Way Roller Fairlead with Stainless Steel Rollers
Remote	15' Sealed Ergonomic Hand-held with Coiled Cord
Dimensions	27.5” L x 8.46” D x 11.57 ”H (698.5mm L x 215.0mm D x 294.21mm H)
Drum Diameter	3.5” (88.9mm)
Drum Length	8.75” (222.2mm)
Mounting Bolt Pattern	10” x 4.5” (254mm x 114.3mm) & 10” x 6.5” (254mm x 165.1mm)
Installed Weight	172 lbs (78 kgs)
Shipping Weight	185 lbs (83.9 kgs)
Warranty	Limited Lifetime Mechanical/Limited 7 Years Electrical
UPC	0 22705 16907 3
Line Pull: 0 lbs	75 Amps Motor Draw / 25 FPM (7.62 MPM) Line Speed
Line Pull: 18,000 lbs	415 Amps Motor Draw /2.5 FPM (.76 MPM) Line Speed

Talon Heavy Duty Series Advantage - Speed and power make our Talon Series winches ideal for recovery and super duty applications. Available in 14,000 and 18,000 lbs with either steel or synthetic ropes. These 2-stage planetary gear winches are packed with essential and extra practical features for efficient, reliable, and safe winching operations under the heaviest loadsTalon Heavy Duty Series Advantage - Speed and power make our Talon Series winches ideal for recovery and super duty applications. Available in 14,000 and 18,000 lbs with either steel or synthetic ropes. These 2-stage planetary gear winches are packed with essential and extra practical features for efficient, reliable, and safe winching operations under the heaviest loadsTalon Heavy Duty Series Advantage - Speed and power make our Talon Series winches ideal for recovery and super duty applications. Available in 14,000 and 18,000 lbs with either steel or synthetic ropes. These 2-stage planetary gear winches are packed with essential and extra practical features for efficient, reliable, and safe winching operations under the heaviest loads

Specifications

Rated Line Pull	18,000 lbs (8,165 kgs)
Motor	Sealed 6 hp (4.48 kw) Series Wound
Gearing	2-Stage Planetary and 2-Stage Spur
Gear Ratio	346:1
Solenoid	Vented, Sealed Submersible Solenoid with 3-Year Warranty
Clutch	Free-spooling Clutch/Pull and Turn
Brake	Automatic/100% Load Holding (outside of drum)
Rope	Wire Rope 1/2” x 90’ (13mm x 27.43m)
Hook	Heavy Duty/Clevis Pinned/Latched
Fairlead	Heavy Duty 4-Way Roller Fairlead with Stainless Steel Rollers
Remote	15' Sealed Ergonomic Hand-held with Coiled Cord
Dimensions	27.5” L x 8.46” D x 11.57 ”H (698.5mm L x 215.0mm D x 294.21mm H)
Drum Diameter	3.5” (88.9mm)
Drum Length	8.75” (222.2mm)
Mounting Bolt Pattern	10” x 4.5” (254mm x 114.3mm) & 10” x 6.5” (254mm x 165.1mm)
Installed Weight	172 lbs (78 kgs)
Shipping Weight	185 lbs (83.9 kgs)
Warranty	Limited Lifetime Warranty/3-Year Electrical
UPC	0 22705 16907 3
Line Pull: 0 lbs	75 Amps Motor Draw / 25 FPM (7.62 MPM) Line Speed
Line Pull: 18,000 lbs	415 Amps Motor Draw /2.5 FPM (.76 MPM) Line Speed
